An electrical contractor pulling 4/0 AWG feeder cable into a tray modeled without checking NEC 392.22 cable tray fill requirementsgenerally finds the problem only in the field. The cables will not sit in a single layer, and the crew waits while the design team reworks the tray size. This kind of rework traces back to fill, clearance, and routing rules being treated as paperwork instead of modeling requirements.
Revit cable tray modeling that builds NEC Article 392 limits, NEMA VE clearances, and bend radius rules into the model catches these conflicts before fabrication starts, not after. Predictive maintenance programs built on BIM data and IoT sensors have been linked to energy savings of 5 to 30 percent in intelligent building systems, a whole-building figure rather than a tray-specific one.
It explains why firms offering Electrical BIM services treat tray detailing as an operational decision,not just a drafting task.Electrical BIM detailing services in the USA work under the NEC, NEMA, and IEEE standards at the same time, which is why fill calculations and clearance rules need to live inside the Revit model itself. Design teams need to know which code sections govern fill and spacing, and how those translate into parameters that hold up through construction.
Cable Tray Fill Capacity, Sizing, and NEC Article 392 Requirements
Three variables decide how much cable a tray may legally carry: tray type, cable construction, and the specific NEC subsection governing voltage class.
Cable Tray Fill Calculations and Capacity Limits
NEC Article 392 sets fill limits by tray type and cable construction For ladder and ventilated trough cable trays carrying multiconductor cables rated 2000 V or less, NEC Table 392.22(A) limits allowable cable fill by tray width using prescribed fill-area values rather than a simple percentage. For example, a 12-inch-wide tray has a maximum allowable fill area of approximately 14 square inches, based on cable outside diameters and tray configuration. It’s calculated from each cable's outer diameter rather than the bare conductor gauge. Solid-bottom trays restrict airflow, so NEC 392.22(A)(4) caps fill at 40 percent of interior area for power and lighting cables, or 50 percent for control and signal-only trays. Large single conductors from 1/0 through 4/0 AWG cannot stack vertically; the sum of their diameters must fit within the tray's interior width in one flat layer.
Cable Spacing and Power/Low-Voltage Separation
IEEE Standard 518, groups cables into four noise susceptibility levels, from Level 1 data and low-voltage signal cable through Level 4 high-amperage power circuits. Different levels sharing parallel open trays without a solid barrier need separation that grows with the voltage and current difference, from roughly 30 mm between Level 1 and Level 2 cable up to 670 mm between Level 1 data and Level 4 power circuits in separate trays. Where a low-voltage line must cross a high-power circuit, routing the two at a 90-degree angle limits the magnetic coupling loop and keeps induced noise manageable. If separate trays are not possible, NEC 392.20 requires a fixed, solid, non-combustible metal divider running the full length of the shared segment.
NEC Compliance Considerations
A tray that passes its fill calculation is not automatically compliant on thermal grounds. Densely bundled cables shed heat less efficiently, so NEC 392.80 requires ampacity derating as fill density rises; solid covers over a ladder tray for more than 6 feet call for derating enclosed multiconductor cables to 95 percent of the values in NEC Table 310.16.
Standard THHN building wire lacks the jacket and crush resistance for open tray use under NEC 392.10, so tray cable needs a Type TC or Type MC listing with a flame rating meeting IEEE 1202 or UL 1685. Metallic trays can also serve as the equipment grounding conductor where the tray's metal cross-section meets NEC Table 392.60(A), with steel trays generally limited to 600-ampere ground-fault circuits and aluminum trays rated up to 2,000 amperes.
These three layers of requirements: fill geometry, EMI separation, and ampacity derating, operate independently of one another. So a tray can satisfy one rule while quietly violating another.
Cable Tray Routing, Bend Radius, and Clearance Requirements
Routing a tray through a building involves three separate constraints: cable stiffness at each turn, support strain at vertical transitions, and physical access for installers and future maintenance.
Bend Radii at Elbows, Tees, and Transitions
Bending a cable tighter than its rated minimum radius stretches conductors on the outer edge and compresses them on the inner edge, damaging insulation and shielding. Tray fittings need a factory radius sized to the largest-diameter cable in the run, not an average. BICSI's Telecommunications Distribution Methods Manual sets a 4x OD minimum bend radius for unshielded twisted pair copper, while fiber optic cable needs 10x OD at rest and 20x OD under pulling tension. Medium-voltage power cable often needs 12x to 15x OD, which is why standard fittings come in 12, 24, and 36-inch sweep radii. Cable bend radius coordination means checking every elbow and riser against the largest cable actually scheduled for that run.
Vertical Drops and Panel Connections
Vertical transitions longer than 24 inches need continuous tray support along the full drop, per NEMA VE 2, rather than a single attachment point at the top. Where cables leave the tray for a panelboard, motor control center, or switchgear, NEMA VE 2 limits unsupported hanging cable to 72 inches between the tray exit and the equipment. The exit point needs a drop-out fitting, curved radius plate, or snap-in bushing so the jacket does not abrade against the tray's metal edge during the drop.
Cable Pulling Access and Overhead Clearances
Clearance around a tray serves two purposes: room to pull cable without excessive friction, and room to service the tray later. NEMA VE 2 calls for 12 inches of clear vertical space above the top rail or between stacked tiers, 6 inches of separation from ductwork or ceiling grids below, and at least 8 inches of open space along one side. Electrical tray clearance in BIM modeling means building these as real volumes the tray cannot intrude on, not as a drawing note. Where a run approaches Electrical Rooms in BIM housing panels or switchgear, NEC 110.26 working space overrides general tray clearances, requiring clear space from the floor to 6.5 feet or the equipment height, whichever is greater.
None of these three requirements, bend radius, support spacing, or clearance, can be verified from a flat 2D line; each depends on the tray's actual three-dimensional geometry.

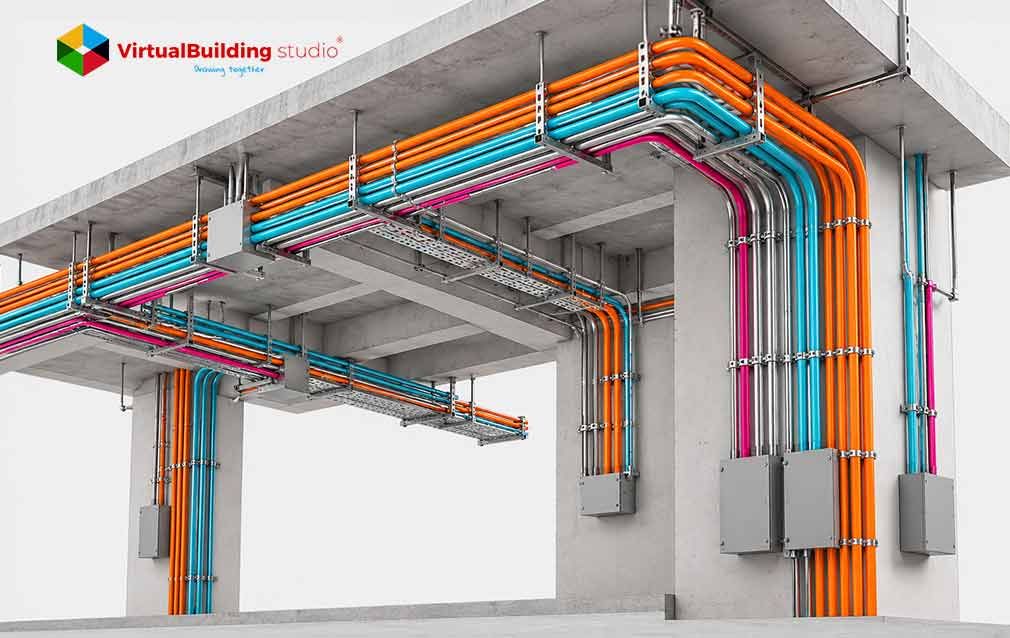

How to Model Cable Trays Accurately in Revit
Turning these code requirements into a working Revit model happens in three stages: building accurate tray geometry, attaching load and fill data to that geometry, and extracting both into schedules.
Modeling Tray Sizes, Fittings, and Routing
MEP BIM Services teams use Revit's native electrical tools as a starting point, but out-of-the-box tray families rarely reflect NEMA VE load classes or true fitting geometry without configuration. Accurate Revit cable tray modeling starts with standard manufactured widths, typically 6 through 36 inches, and depths of 4 to 6 inches, matched to the tray types specified for the project. Fittings need the correct bend radius built in, since a default 90-degree miter does not represent an actual ladder tray elbow. Teams working with the Revit API can script fitting placement so elbows default to a 12 or 24-inch sweep, which is what makes Revit electrical shop drawings usable for field installation rather than conceptual only.
Tracking Cable Quantities and Load Parameters
Cable count, combined cross-sectional area, and weight per linear foot are not data a modeler should type in by hand, since any routing change forces a recalculation downstream. A NEC 392 cable tray fill Revit workflow typically pulls outer diameter data from a linked cable schedule through Dynamo or pyRevit, runs the area calculation, and writes the result into a shared parameter on the tray instance. When calculated fill exceeds 40 percent on a solid-bottom tray or 50 percent on a ladder tray, a view filter can flag the segment, prompting the team to upsize the tray before coordination moves further.
Automating Cable Tray Schedules
Producing usable Revit electrical shop drawings means the schedules on sheet match the model exactly, without manual overrides sitting between the two. Dynamo workflows can extract fill percentages, load weights, and fitting coordinates into tray schedules, while Revit's phase and phase filter properties track existing versus new segments. For MEP BIM Services supporting prefabrication, this same data drives the bill of materials, down to the straight sections, splice plates, and hold-down clamps needed for off-site fabrication.
Each of these three steps depends on the one before it, since a schedule built from disconnected parameters only repeats whatever errors already existed in the geometry.
Coordinating Cable Trays With Other Building Systems
Cable trays rarely occupy space in isolation, so coordination has to address three overlapping concerns: proximity to other systems, long-term movement, and the physical weight the tray imposes on the structure above.
Coordination With Ductwork, Piping, and Structural Elements
Trays running parallel to boiler flues, steam lines, or hot water piping need at least 6 inches of separation under NEMA VE 2, since ambient heat above 100°F compromises heat dissipation from the cables inside. Fire-rated wall and floor penetrations need their own detailing, since a tray passing through an opening breaks the compartmentation the wall was built to provide. The penetration needs a through-penetration firestop system tested to ASTM E814 or UL 1479, modeled as a sleeve or opening family carrying the firestop specification as metadata.
Resolving Ceiling Space and Installation Conflicts
Clash detection tools identify where a tray and a duct occupy the same space today, but resolving the clash well means accounting for how materials behave over time. Long tray runs expand and contract with seasonal temperature swings, and NEMA VE 2 sets maximum spacing between expansion joints based on that movement. A rigid conduit tied into a long expanding tray run without an expansion fitting eventually shears under the accumulated stress. Coordinators need to place expansion splice plates at the correct intervals and model bonding jumpers across each gap, since the ground path has to stay continuous even where the tray is allowed to move.
Accounting for Cable Weight and Support Loads
Trays carry a NEMA VE 1 load classification defining working load per linear foot over a given support span, built on a 1.5 safety factor plus the ability to carry a 200-pound concentrated load at mid-span. A Class 8C tray, for instance, handles 100 pounds per linear foot over an 8-foot span, while a Class 20C tray carries the same load over a 20-foot span. Seismic bracing adds another layer: ASCE 7-16 and 7-22 require bracing for trapeze-supported trays carrying 100 pounds or more total, though the 12-inch rule exempts hangers 12 inches or shorter from this requirement when positively attached to the structure above.
Resolving a spatial clash without checking thermal separation, expansion behavior, or support load only shifts the conflict from the model to the job site.
Common Cable Tray BIM Modeling Mistakes and Compliance Checklist
Most compliance failures trace back to miscalculated fill, unmodeled clearances or schedules disconnected from the geometry.
Incorrect Fill Calculations and Cable Spacing
The normal Revit check for NEC 392 cable tray fill applies one volumetric formula to all cable sizes and does not take into account the NEC 392.22(B) one layer rule for large conductors. A script checking only total area against 50 percent fill may mark a tray full of 4/0 AWG feeders compliant, when code requires a single flat layer. The same oversight appears with tray type: 50 percent applies to ladder trays whereas solid-bottom trays cap at 40 percent.
Missing Clearances and Bend Radius Checks
Modelers sometimes route trays tight against beams, eliminating the clearances NEMA VE 2 requires for access. Clearance for electrical trays should be caught during BIM reviews prior to field installation. As NEC 110.26 working space applies near electrical rooms in BIM. Cable bend radius coordination should receive the same level of scrutiny at direction changes, where undersized fittings cannot accommodate heavy or medium-voltage cable.
Checklist items to confirm:
- Fill percent matched to tray type threshold.
- Each segment had its clearances checked.
- Bend radius fittings sized for largest cable
- Checked hanger rod length for seismic exemption
Revit Schedule and Documentation Reviews
Schedule values are entered manually. Nothing gets updated when geometry changes, so there is documentation risk. Teams delivering Electrical BIM services link fill ratios and fitting counts to instance parameters, so floor plan edits carry through automatically.
Catching these errors in the model avoids costly field change orders.
Conclusion
Fill, clearance, and bend radius rules belong in the model from the first routing decision, not as a post-build checklist. A tray that passes a volumetric fill check can still fail on ampacity or clearance grounds. Applying NEC, IEEE, and NEMA rules inside Revit cable tray modeling, backed by scripted parameter checks, keeps the model consistent with what gets built. Electrical BIM detailing services in the USA treat this as standard practice, since the alternative surfaces as field rework. The next step is auditing existing tray families and schedules against these thresholds before the next coordination cycle.
