Mechanical Plant Room Modeling
Translated schematic diagrams and plan layouts into a detailed LOD 300 Revit model of plant room systems.
Mechanical Plant Room
Clash-Free BIM Modeling for Plant Room Refurbishment Project, UK
Delivered precise LOD 300 BIM modeling and coordination for complex mechanical plant room systems within a tight two-week timeline.
Overview
Project Overview
When a UK-based MEPF team needed precise BIM support for a building refurbishment and new block extension, they partnered with us. The scope covered detailed LOD 300 modeling of mechanical plant room systems.
With a two-person team and a two-week timeline, we translated schematic diagrams and plan layouts into a fully coordinated 3D Revit model, ready for clash-free construction execution.
Project Type Mechanical Plant Room
Level of Development LOD 300
Manpower Used 2 Resources
Location UK.jpg)
Tools We Use
Inside the Tools You Already Use
Mechanical plant room modeling was delivered in Autodesk Revit with clash detection embedded throughout the two-week sprint.
Autodesk RevitProject Deliverables
Input vs Output
From schematic diagrams and plan layouts to a clash-free LOD 300 Revit model and shop drawing-ready deliverables.
What We Received
.jpg)

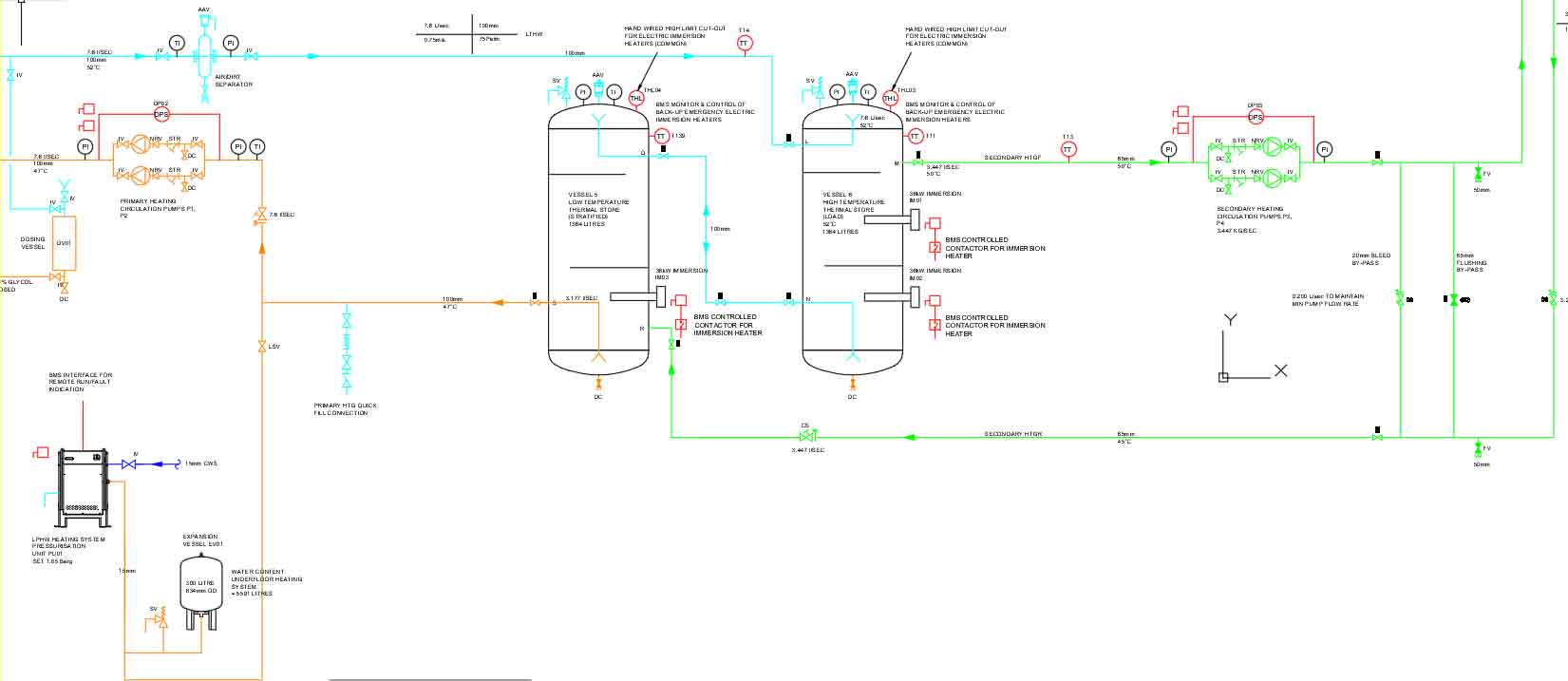

- 2D mechanical schematics

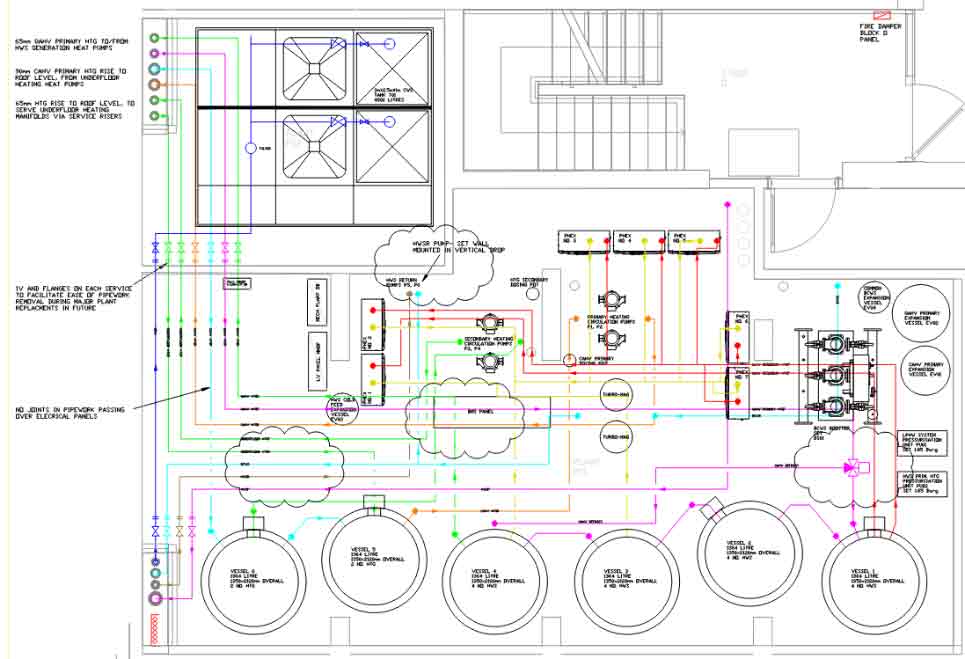

- Plan layout drawings
- Plant room refurbishment scope
- Equipment and routing references
- Two-week delivery schedule
What We Delivered

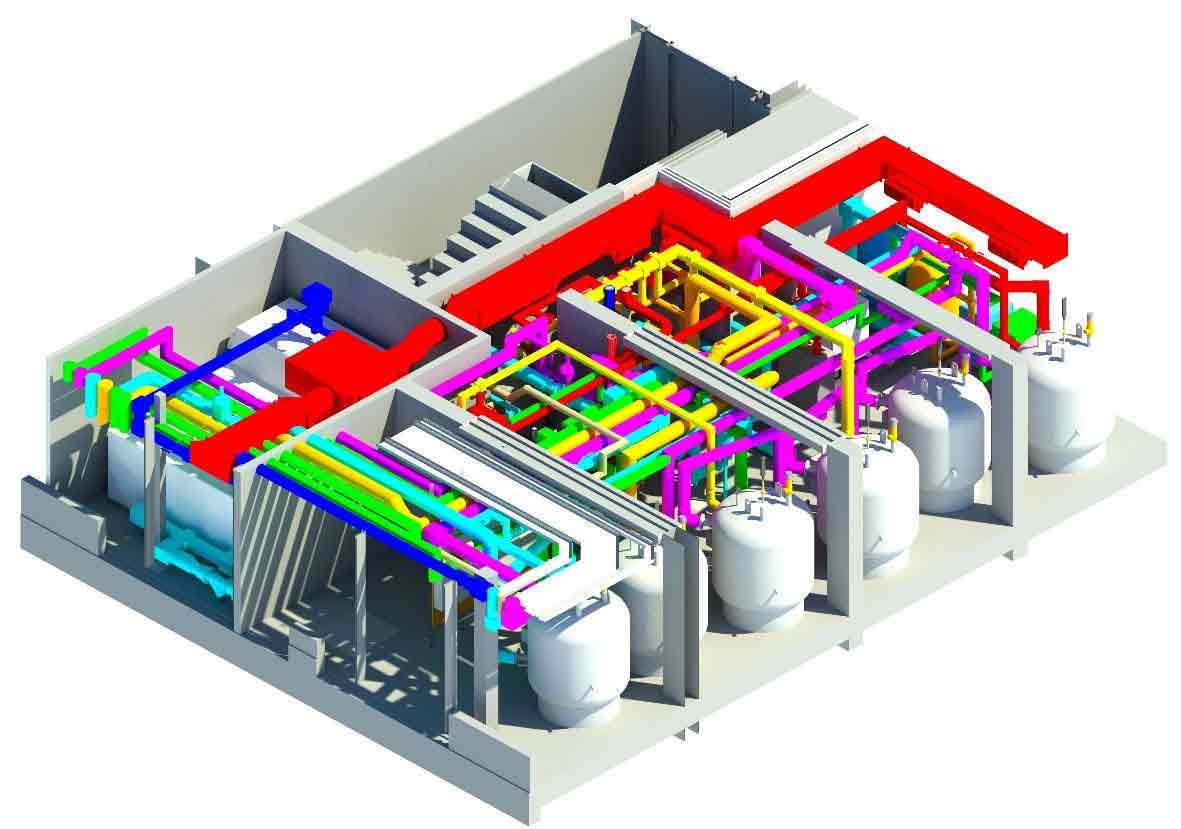

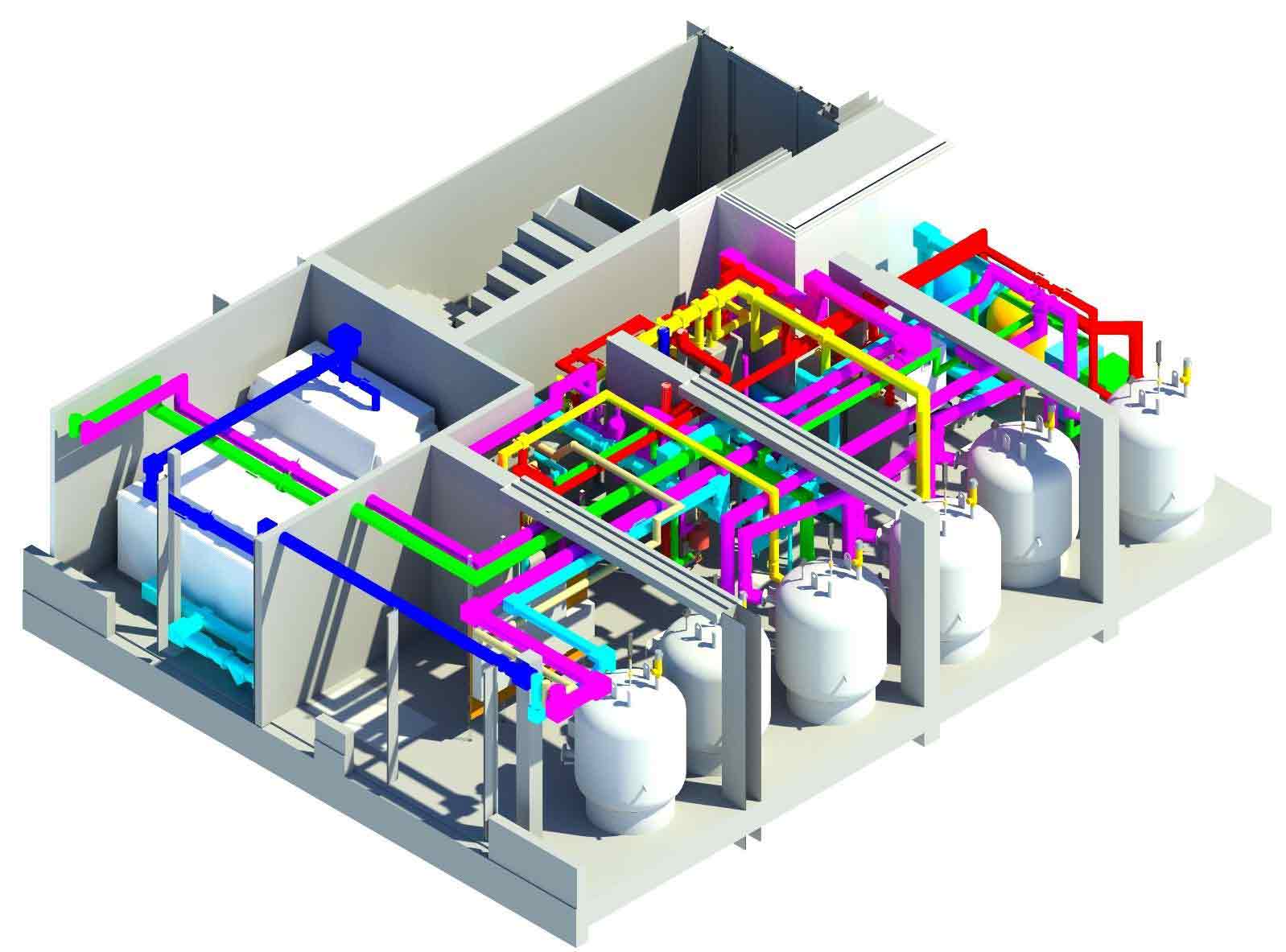

- LOD 300 mechanical plant room model
- Clash-free coordinated Revit model
- Shop drawing preparation package
- Construction-ready model output
Client Challenges
Pain Points of the Client
Confined plant room space, schematic-to-3D conversion complexity, and a two-week deadline demanded disciplined BIM execution.
01
Complex Schematic Interpretation
Translating 2D mechanical schematics into accurate, construction-ready 3D models required specialist BIM expertise and process discipline.
02
Confined Space Coordination
The plant room had limited spatial clearance, making clash-free routing of mechanical systems extremely challenging.
03
Multiple Interconnected Systems
Managing interdependent mechanical systems within one model demanded structured modeling and coordination oversight.
04
Clash Risk Before Construction
Undetected design conflicts could cause costly rework and delays during the physical installation phase on-site.
05
Short Delivery Timeline
The two-week window required an efficient, structured workflow to meet quality and schedule requirements simultaneously.
06
SD to 3D Conversion
Schematic to model conversion required high accuracy and design clarity.
07
Space Constraints
Managing dense mechanical systems within restricted plant room space without conflicts.
08
QC Under Timeline Pressure
Maintaining quality under a strict two-week delivery timeline.
Our Approach
How We Solved It
A structured, review-driven approach built each system progressively with coordination checks embedded at every stage.
Space Utilization & Routing Optimization
Optimized mechanical routing within confined plant room clearance zones to avoid installation conflicts.
Clash Detection & Coordination
Identified and resolved clashes progressively before final model delivery.
Shop Drawing Preparation
Prepared construction-ready outputs suitable for shop drawing extraction from the coordinated model.
Execution Strategy
Review-Driven Plant Room Modeling in Two Weeks
Our team adopted a structured, review-driven approach to BIM modeling. Each system was built progressively, with coordination checks embedded at every stage. This ensured clashes were identified and resolved before final model delivery.
Model Setup and BIM Standards Alignment
Model Setup and BIM Standards Alignment
0101Model Setup and BIM Standards Alignment
Model Setup and BIM Standards Alignment
- 02
Schematic and Plan Layout Review
Schematic and Plan Layout Review
02Schematic and Plan Layout Review
Schematic and Plan Layout Review
Mechanical System Modeling in Revit
Mechanical System Modeling in Revit
0303Mechanical System Modeling in Revit
Mechanical System Modeling in Revit
- 04
Clash Detection and Conflict Identification
Clash Detection and Conflict Identification
04Clash Detection and Conflict Identification
Clash Detection and Conflict Identification
Coordination Reviews and Issue Tracking
Coordination Reviews and Issue Tracking
0505Coordination Reviews and Issue Tracking
Coordination Reviews and Issue Tracking
- 06
Iterative Clash Resolution and Model Refinement
Iterative Clash Resolution and Model Refinement
06Iterative Clash Resolution and Model Refinement
Iterative Clash Resolution and Model Refinement
Final Model Validation and Drawing Production
Final Model Validation and Drawing Production
0707Final Model Validation and Drawing Production
Final Model Validation and Drawing Production
- 08
Delivery of RVT Model and Shop Drawings
Delivery of RVT Model and Shop Drawings
08Delivery of RVT Model and Shop Drawings
Delivery of RVT Model and Shop Drawings
Project Outcomes
Coordinated. Approved. Delivered.
Quantifiable outcomes delivered through accurate modeling, proactive clash detection, and schedule-focused execution.
3x Cost Saving
Focused offshore modeling support reduced delivery cost for the two-week plant room engagement.
99% On-time Delivery
The clash-free LOD 300 model was delivered within the two-week project window.
95% Project Efficiency
Progressive modeling with embedded coordination checks kept a two-person team on schedule.
99% Quality Assurance
Model accuracy and clash resolution were validated before shop drawing production.
300 Clashes Detected & Resolved
Proactive clash detection prevented mechanical conflicts from reaching the installation phase.
