Clash-Free BIM Coordination for Multi-Building Beachside Resort : Hawaii, USA
High-precision LOD 350 modeling across architecture, structure, and MEP ensured seamless coordination for a fast-paced resort project.
Project Overview
A BIM delivery partner required coordinated Revit models for a large beachside resort development in Hawaii, USA. The project featured three buildings. A main building, a garage office, and detached bedroom units. Spread across a total area of 40,000 sq. ft., the project scope required LOD 350 modeling across Architecture, Structure, and MEP disciplines. Our team of five delivered fully integrated Revit models with thorough clash coordination, on time, within three weeks.
Why the Client Needed Help
Multi-Building Coordination Complexity
Managing coordination across multiple buildings increased the risk of inconsistencies and delayed design integration.
High LOD Requirement Across All Disciplines
LOD 350 demands precise element geometry and spatial relationships across all trades, that required specialist modeling expertise.
Tight Delivery Window of Only Three Weeks
The project demanded fast-paced, accurate execution across five team members with zero room for rework due to coordination errors.
Site-specific Coastal Constraints Affecting All Systems
A beachside resort setting introduced unique structural and MEP routing challenges not present in standard commercial building projects.
Scope of Work
Architectural BIM Modeling
Structural BIM Modeling
MEP System Modeling
Clash Detection and Resolution
Multi-trade BIM Coordination
Key Project Challenges
Three-building Integration
Coordinating consistent LOD 350 modeling standards across three structurally distinct buildings simultaneously.
MEP Routing in Tight Zones
Routing mechanical, electrical, and plumbing systems without clashing with structural elements in constrained ceiling and wall zones.
Cross-discipline Clash Volume
High clash density between Architecture, Structure, and MEP systems required systematic detection and iterative resolution cycles.
Compressed Timeline with Full-scope Delivery
Delivering fully coordinated models across all disciplines within a three-week deadline required strict workflow discipline.
Our Project Execution Strategy
We deployed a team of 5 BIM experts and a standardized workflow to integrate all disciplines from day one. Parallel modeling, structured clash cycles, and daily coordination kept the project on track. Every issue was logged, assigned, and resolved before final model sign-off.
Solution Delivered

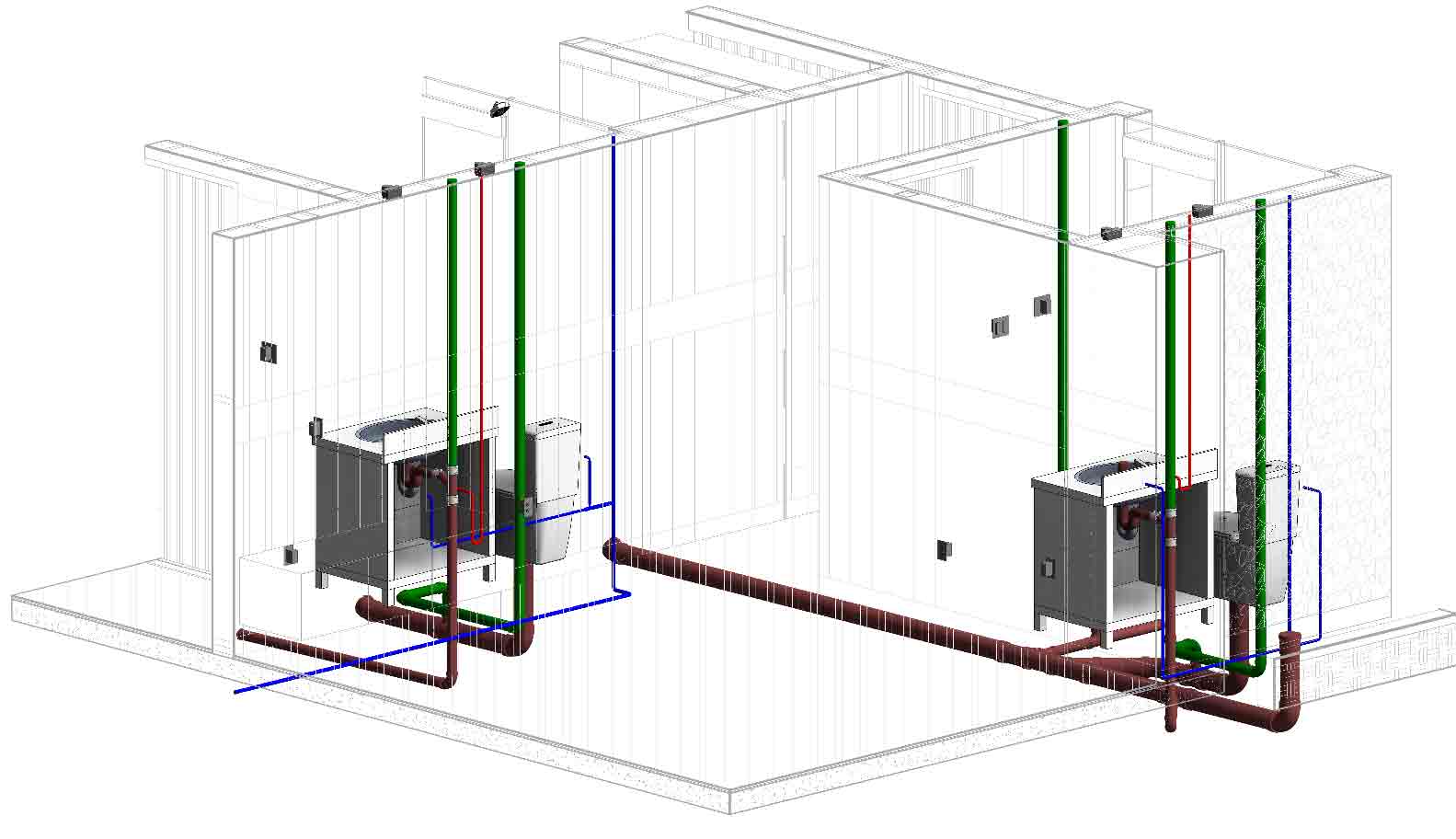

.jpg)

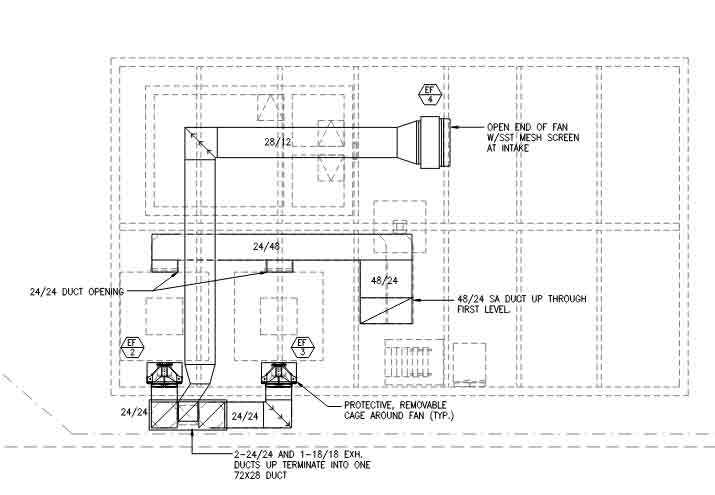

.jpg)

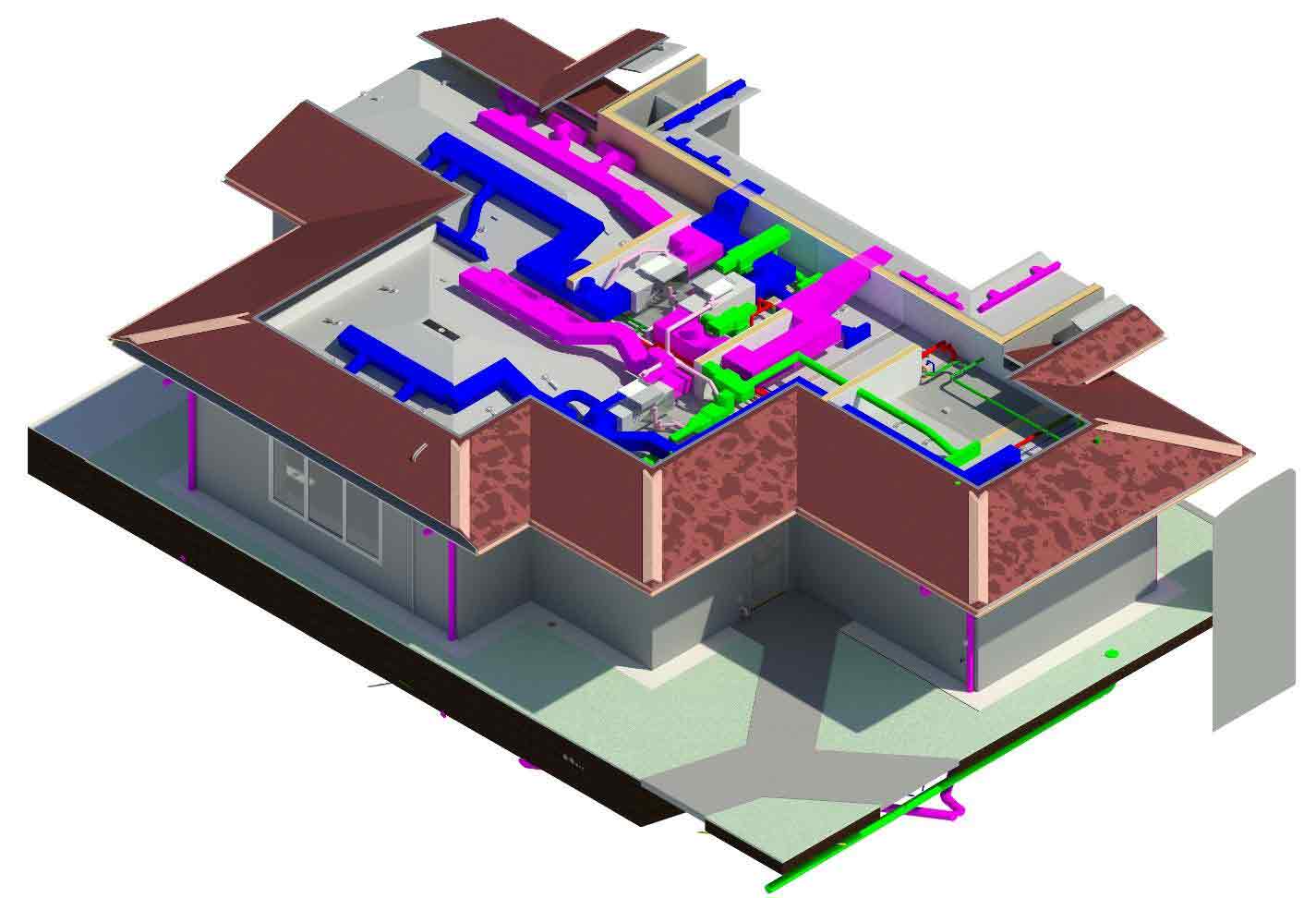

.jpg)

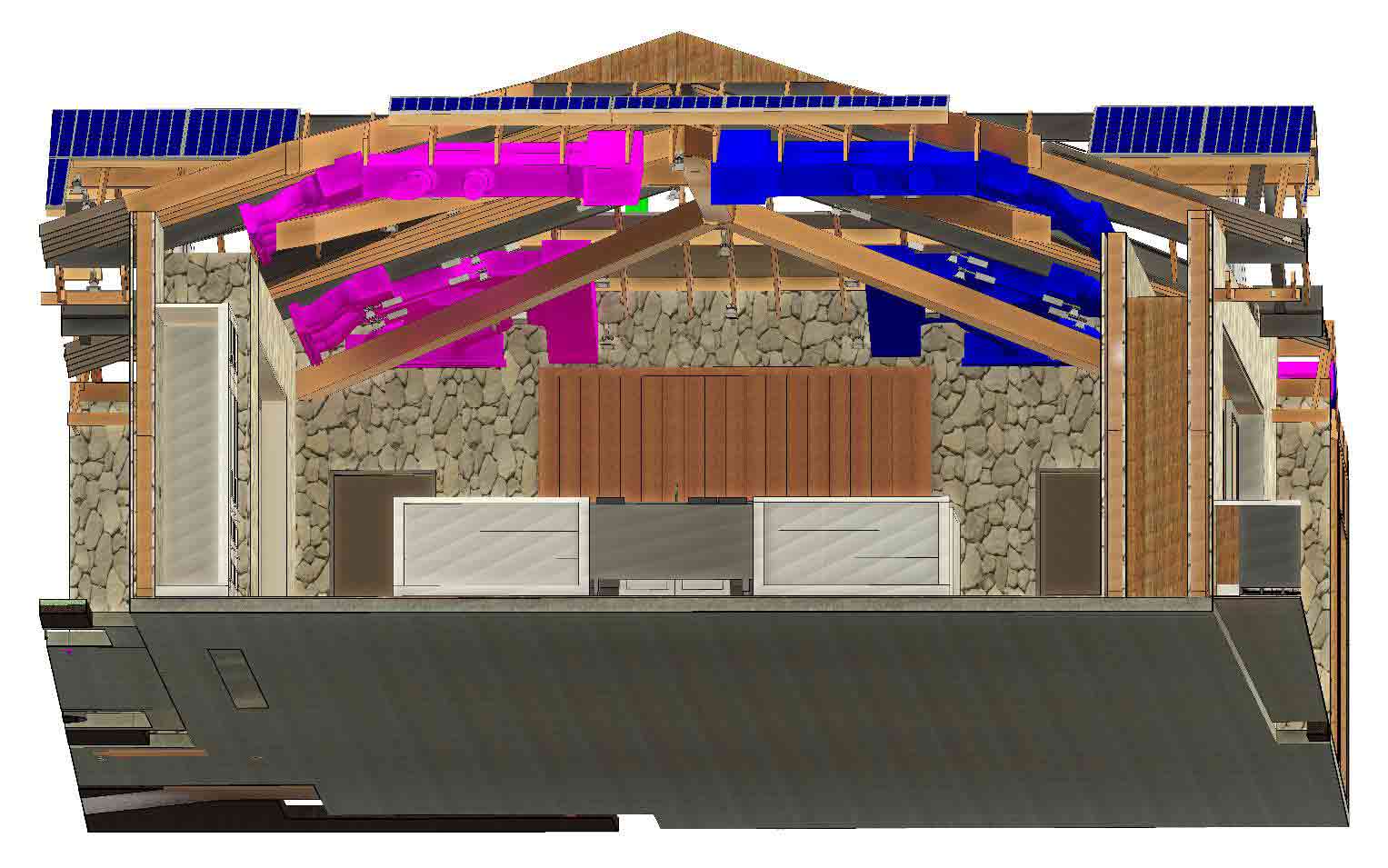

.jpg)
Business Impact
Tools Used
Revit
Navisworks
Client Testimonial
"Working with Virtual Building Studio on our beachside building project was an outstanding experience. Their MEP work was accurate, timely, and instrumental in helping our construction team avoid conflicts and stay on schedule. We truly appreciate their dedication and highly recommend their services."
