CAD to BIM Conversion with LOD 400 for a UK Based Resort and Adventure Park


Brief Overview

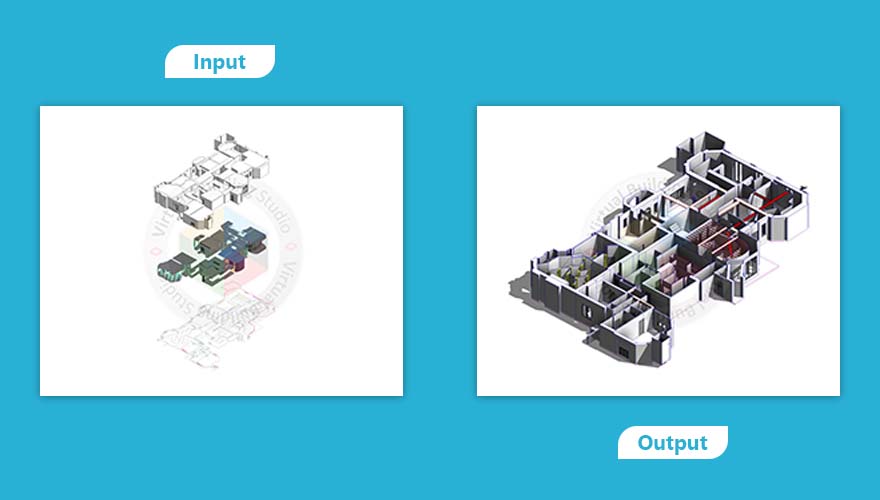

This project involved converting 2D CAD models into a comprehensive 3D Building Information Modeling (BIM) model with a Level of Detail (LOD) 400. The project was undertaken for a renowned UK-based resort and adventure park spanning an area of 6,258 sq. ft. in the Art & Entertainment sector. The primary goal was to create an accurate and detailed BIM model to facilitate effective planning, design, and construction processes.
Challenges/Requirements
Accurate Conversion
LOD 400
Complex Geometry


Deliverables
The primary deliverable was a comprehensive 3D BIM model of the resort and adventure park, meeting the LOD 400 requirements. The model included detailed representations of buildings, rides, landscapes, and other relevant elements.
The BIM model incorporated parametric data, enabling efficient management and coordination of various project aspects such as materials, quantities, and schedules.
Outcomes / Benefits
Enhanced Collaboration
Improved Planning and Design
Streamlined Construction Process
