MEP systems Mechanicals, Electrical, fire safety and Plumbing form the functional backbone of every modern building. These systems demand careful spatial coordination with architecture and structure from the earliest project stages.
High-density ceiling zones create immediate spatial pressure on service routing. Multi-system integration across HVAC, fire suppression, data cabling, and controls compounds that pressure further. Parallel workflows across global teams introduce coordination complexity at every design phase. Multiple stakeholders work simultaneously across a single project. Design changes arrive frequently, and unified modeling standards stay absent in many project environments. Each condition creates fertile ground for MEP Coordination Issues that grow costly as construction progresses.
Increasing complexity in 2026 demands higher coordination standards from every project team. Advanced BIM tools cover every major project in 2025 and 2026. Coordination failures persist through this period. Root causes trace back to process gaps rather than technology gaps. The most critical MEP Modeling Mistakes all share a common origin. Early-stage process failures compound through every subsequent project phase.
This article highlights the critical MEP modeling mistakes that undermine coordination and provides practical guidance for achieving clash-free, fabrication-ready BIM models.
Mistake 1: Poor Clash Detection and Incomplete Coordination Workflows
One of the most damaging patterns in MEP coordination involves poorly timed or inconsistently executed clash detection. Teams run clash detection too late in the design process, or prematurely before models reach adequate maturity. Manual visual checks substitute for automated workflows, and results fall short consistently. Over-reliance on visual geometry checks leaves soft clashes and workflow sequencing conflicts entirely hidden until field installation begins.
Workflow gaps compound this problem. Teams operate without a defined clash matrix, without system prioritization, and without formal tracking of resolved versus unresolved clashes. This absence of structure allows conflicts to accumulate invisibly through design development.
Industry reports say projects using structured BIM clash workflows reduced field change orders by up to 40%. Projects using manual coordination methods delivered far higher on-site conflict rates. On-site conflicts between ducts, pipes, and cable trays force expensive re-routing and redesign. Fabrication schedules suffer delays and project costs rise sharply.
Three categories of clashes demand attention in every coordination workflow.
- Hard clashes involve direct geometry conflicts where two elements occupy the same space.
- Soft clashes cover clearance and maintenance access violations that create access problems after installation.
- Workflow clashes describe installation sequencing conflicts that prevent proper trade coordination on site.
Structured BIM Clash Detection Services address this gap directly. Teams run clash detection on a weekly or milestone-driven schedule using tools like Navisworks and Autodesk Construction Cloud. Following a defined BIM Clash Detection Process keeps coordination systematic and traceable throughout the project lifecycle.
Mistake 2: Inaccurate Level of Development (LOD) in MEP Models
LOD mismatches rank among the most technically damaging errors in MEP modeling. Teams frequently apply LOD 200 geometry in zones where LOD 350 is required for coordination. A mechanical model at LOD 350 paired with an electrical model at LOD 200 creates a coordination gap. That gap surfaces only during fabrication or installation.
| LOD Stage | Purpose | Key Deliverable |
|---|---|---|
| LOD 100–200 | Conceptual & Schematic | Massing, System Intent |
| LOD 300 | Design Coordination | Sized, Located Elements |
| LOD 350 | Clash-Free Coordination | Fittings, Supports, Clearances |
| LOD 400 | Fabrication | Full Component Data, Shop Drawings |
Missing fittings, hangers, and connection details in lower-LOD models lead to inaccurate quantity take-offs and prefabrication failures. Fabrication attempted from incomplete models produces rework costs that far exceed the investment in early coordination. A study on construction productivity found that projects defining LOD requirements in a BIM Execution Plan reduced late design changes by 32%. The same study reported a 28% cut in rework costs. These figures reflect the direct financial value of the LOD discipline across the entire project team.
The BEP defines LOD expectations before modeling begins. This keeps every trade aligned to the same coordination standard throughout all project phases. Engaging professional MEP BIM Services guarantees that models meet the correct LOD for every project phase.
Mistake 3: Improper System Routing and Space Allocation Issues
System routing errors represent some of the most consequential modeling mistakes on complex projects. Teams route services without applying a defined hierarchy. System priorities go unaddressed, and multiple services share the same spatial corridor without coordination.
Ceiling void zones operate without a zoning strategy. Shaft planning starts too late, and insufficient ceiling height forces systems into impossible configurations. HVAC ducts conflict with structural beams. Cable trays clash with sprinkler pipes. Plumbing slopes conflict with architectural ceiling lines.
Engineering physics governs these decisions at every stage. Gravity-fed plumbing systems demand a continuous fall a minimum slope of 1:80 for horizontal drainage runs. Insulation clearances add 50mm to 100mm around most pipe services, a dimension teams frequently omit from models. A poorly sized duct forces the system to compensate through increased fan speed. This raises energy consumption and creates acoustic problems in occupied spaces.
Apply this service priority order on every coordination pass. HVAC ductwork claims routing priority first, as it carries the least directional flexibility. Gravity drainage routes second, governed by fixed slope requirements. Pressurized pipework fills remaining zones, offering directional flexibility across available space. Electrical cable trays route last, with clearance from all live services maintained throughout.
A structured Mechanical BIM Modeling Workflow guides teams through zoning strategy and space allocation from project outset. Applying this hierarchy from the first layout pass prevents congested ceilings, maintenance inaccessibility, and reduced system performance.
Mistake 4: Lack of Standardized Naming Conventions and BIM Standards
Naming convention failures represent a hidden and high-impact category of MEP modeling errors. Teams assign inconsistent names to the same systems across trades. Parameter fields stay empty, and classification tags remain undefined throughout the project. Different contractors name the same supply air system four different ways.
Schedule extracts pull incorrect data from models with broken parameter structures. BIM reduces to a geometry-only deliverable when data standards are absent. The model loses its value as a project-wide information asset. Quantity schedules export empty fields. Equipment tags carry the wrong classification codes. FM teams receive a model that fails to serve operational data queries.
A research study published in Automation in Construction found that projects with standardized BIM naming conventions and parameter structures reduced FM handover errors by 38%. The same study found that consistent data standards cut data preparation time for digital twin deployment by nearly half. Automation tools fail to parse inconsistent data, and reporting and costing workflows produce errors at every stage.
The BIM Execution Plan carries responsibility for defining and enforcing naming conventions before modeling begins. ISO 19650 standards provide the framework for information management across all disciplines. Standardized parameter structures and consistent classification systems transform the MEP model from a visual aid into a project-wide data asset.
Mistake 5: Inconsistent Model Updates and Version Control Problems
Version control failures cause some of the most disruptive coordination breakdowns on live projects. Multiple model versions circulate across teams simultaneously. Manual file sharing replaces proper data management, and centralized coordination environments remain underused. Teams work from outdated model files that miss the latest architectural updates. Decisions made in one discipline fail to reach another discipline in time.
The impact appears clearly on-site. A structural engineer increases the beam depth by 150mm late in design development. The MEP team, working from an older model version, routes ductwork directly through that beam's revised profile. The conflict surfaces during installation, forcing costly field cutting and re-routing across the entire trade sequence.
Updated architectural changes produce cascading MEP conflicts when version control breaks down. These changes include a repositioned shaft, a revised ceiling height, or a relocated structural element. Each untracked revision compounds into multiple on-site problems that delay installation and increase cost.
Cloud-hosted platforms like Autodesk Construction Cloud and BIM 360 maintain a single source of truth for all model files. BIM Coordination in MEP frameworks recommends model update frequencies aligned with design milestones. Every revision carries a timestamp, a description, and a responsible owner. These three attributes prevent coordination failures caused by outdated data circulating across the project team.
Mistake 6: Communication Gaps Between MEP, Architectural, and Structural Teams
Communication breakdowns cause more coordination failures than any single modeling error. Siloed workflows isolate trades from each other. Coordination meetings happen infrequently, and RFI management stays informal and inconsistent throughout the project. Architectural ceiling changes go unshared with MEP modelers. Structural revisions bypass the coordination team. MEP assumptions about available space go invalidated against current drawings. Poor RFI management leaves design questions pending for weeks, and assumptions about space fill the gap between trades. Each gap represents a communication failure with direct modeling consequences.
Each gap triggers a ripple effect across the project. One unshared revision creates three coordination conflicts. Three conflicts produce six field queries. Six field queries delay one full week of installation. The sequence multiplies across a large project and compounds cost at every stage.
Weekly coordination meetings with all disciplines present address this problem directly. Real-time collaboration platforms keep all teams aligned on current design data. A clear responsibility matrix defines who owns each communication channel and design decision. Coordination functions as a communication process, and modeling serves as its technical output.

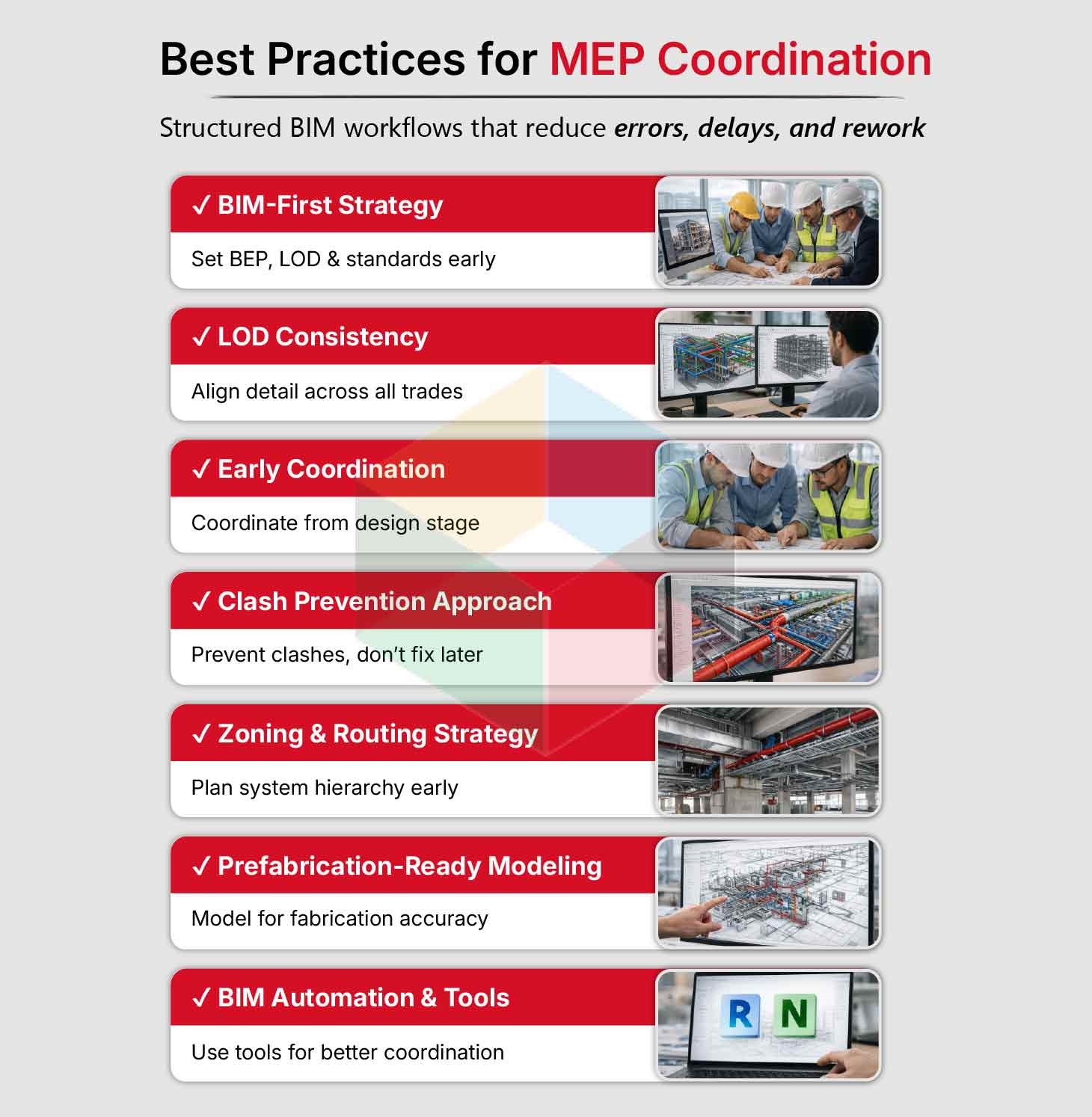

Best Practices to Avoid MEP Modeling Mistakes and Improve Coordination
Proactive BIM management prevents coordination failures far more effectively than reactive correction. The best project teams adopt structured processes across process design, modeling practice, coordination workflows, and technology adoption. Each area demands defined ownership and consistent execution from project kickoff. At the process level teams adopt a BIM-first strategy from day one. A clearly defined BEP sets LOD requirements, naming conventions, parameter standards, and coordination responsibilities before modeling begins. Early coordination starting at schematic design catches space conflicts before they harden into fixed geometry.
Modeling practice demands LOD consistency across all disciplines. Engineers validate system sizing, slopes, and clearances before modelers translate them into BIM geometry. Models serve installation readiness, advancing beyond visualization alone.
Coordination workflows operate in three dimensions by default. Clash prevention takes priority over clash resolution at every phase. Teams that front-load coordination effort during design development eliminate the most expensive field conflicts before fabrication begins. Prefabrication integration starts at the coordination stage, with teams modeling spool dimensions and fabrication tolerances from the outset. Zoning strategies define spatial ownership for each service cluster before routing begins.
BIM Automation in Construction tools extend coordination capability through AI-driven clash prediction and automated model checking. Revit handles parametric MEP modeling. Navisworks drives BIM clash detection Process and 4D construction sequencing. Autodesk Construction Cloud delivers cloud-hosted version control across all project files. Specialist outsourcing teams deliver the modeling depth and coordination experience that complex projects demand.
Conclusion
MEP coordination failures are predictable, preventable, and process-driven. Every failure point examined in this article carries a defined, repeatable solution. Teams that apply structured workflows and maintain LOD accuracy deliver buildings faster. Teams that adopt standardized data conventions and treat communication as a core discipline reduce change orders across every project phase.
BIM technology exposes poor processes rather than correcting them. Most coordination issues originate from poor workflows, absent standards, and weak inter-discipline communication. Projects that succeed start coordination at schematic design. They follow structured workflows through every phase and maintain model accuracy through final commissioning.
The best MEP model is the one that installs without conflict on site. A coordinated, fabrication-ready MEP model in 2026 delivers fewer field conflicts and reduced rework. It accelerates commissioning and produces a building that performs as designed. A well-coordinated MEP model reduces field labor hours, accelerates trade sequencing, and supports prefabrication at scale. Executing it with discipline separates projects that succeed from projects that require costly recovery.
